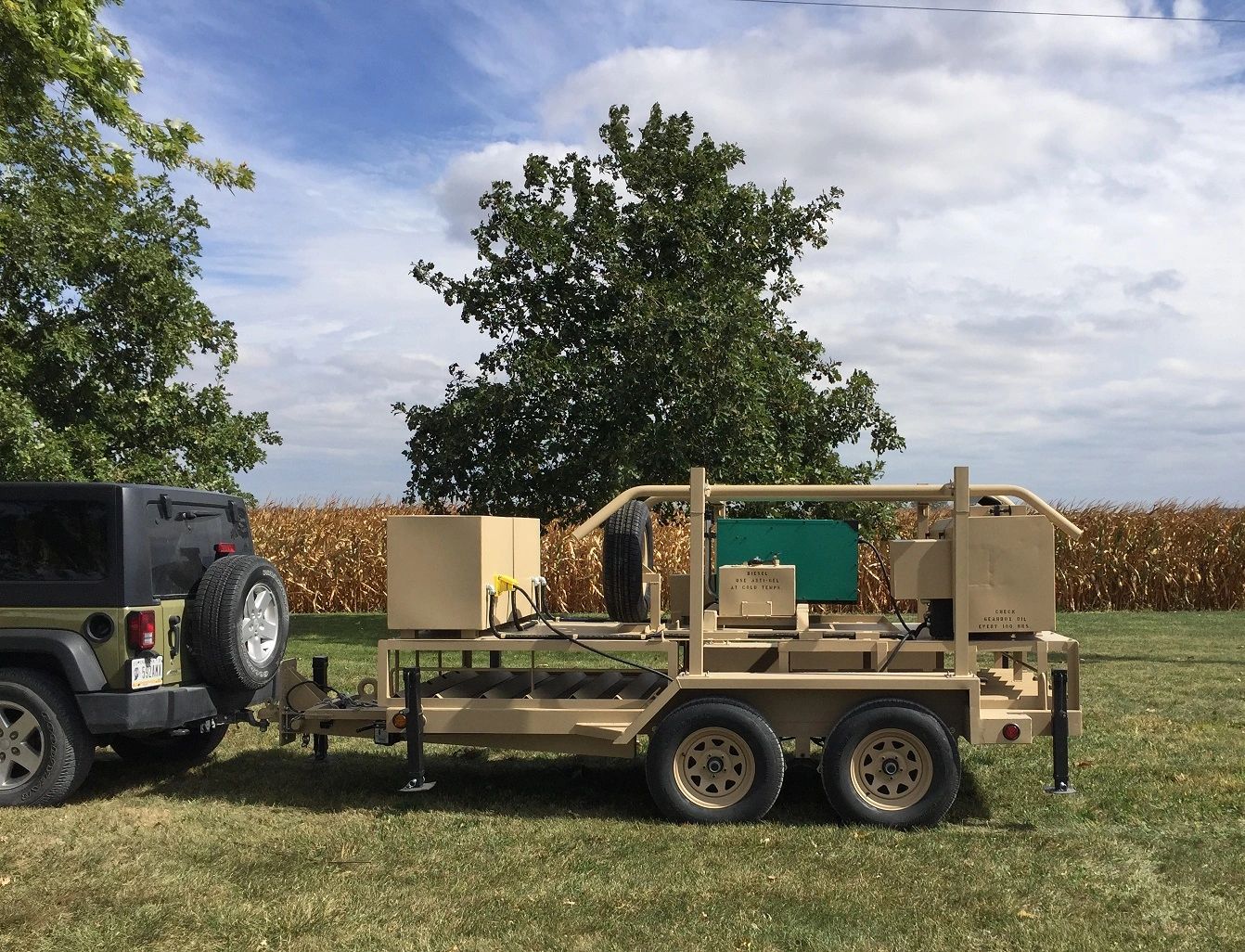

AXE4FT-12H

 The SkyDoc™ AXE4FT-12H platform can be modified to accommodate a wide variety of payload packages (Atmospheric/Communications/Surveillance/Data Links) giving it the capability to meet a wide assortment of projects.

 The SkyDoc™ Aerostat Model #28 net lift 150lbs (58kg) is used for heavy lift payloads. This also allows for the extreme cold weather to not be a factor when lifting

 All payload platforms would be equipped with a gyro stabilized camera and radio transceiver link. Control signals are sent to the remote platform, and the video feed is received through this radio link with an effective radio horizon of 39 miles (63km) from command/control center to the remote platforms.

• AXE4FT-12H dimensions: 168” Length – 70” Width – 43.12” Height
• Aerostat storage container (Pelican Case 26”L – 24”W – 31”H
• Winch w/electrical slip ring and Ethernet connection
• 15' (4.5m) Winch control pendant
• 12 bottle helium storage (6 forward – 6 aft)
• Helium fill regulator with hose and fill tube
• Control panel and battery storage
• Shore power breaker to connect external 120VAC to the DLS-30/IQ4 battery charger
• Main DC ON/OFF switch turns the winch on and off
• Winch control by externally connected pendant
• Battery charger DLS-30/IQ4 will connect directly to the battery 30 amp battery charger
• 2 SLA-1175 Marine deep cycle 75AH to provide DC power
• 3Kw diesel generator with 17gal fuel container
• Locked Storage container
• Universal (NATO) trailer hitch
