AXE4LT-4H

 The SkyDoc™ Tactical Aerostat system can be configured as a command and control system. The main AXE4LT-4H platform with camera and communication links would be capable of communicating with additional systems in remote areas. The AXE4LT-4H systems positioned in remote areas utilizing surveillance camera and data link capability would allow for large areas to be monitored from a central command/control center. The command system would be connected to a local command/control bunker through an Ethernet or fiber optic cable for enhanced security and interference free operation. The remote systems could be connected through two way satellite links.

 Standard open frame triangular platform, each side is 39" (990mm). There is a circular carbineer attachment ring at each point to secure the platform with a carbineer to each control line equipped with a cable line stop. Platforms may be custom built to suit specific payload configuration.

 The central control Tactical Aerostat would consist of a SkyDoc™ Tactical Aerostat Model #22 net lift 63lbs (28.6kg). The remote Tactical Aerostat would be the SkyDoc™ model #20 net lift 47lbs (21kg). The Tactical Aerostats are connected to the tether at the apex by the control's lines, (left/right/keel). The net lift does not include payload, payload platform, cable line stops, and attachment carbineers.

 The command or "control" payload platform can be equipped with up to 4 gyro stabilized cameras and radio links to the remote systems. The remote payload platforms would be equipped with a gyro stabilized camera and radio transceiver link. Control signals are sent to the remote platform and the video feed is received through this radio link with an effective radio horizon of 39 miles (63km) from the control platform to the slave platforms.

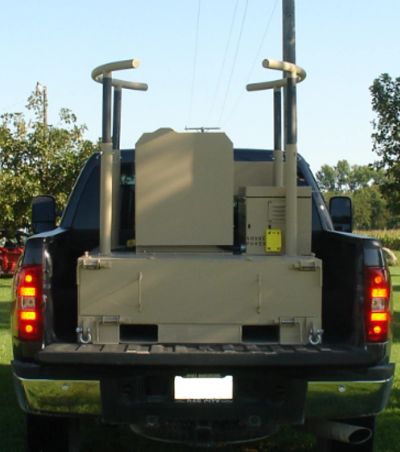

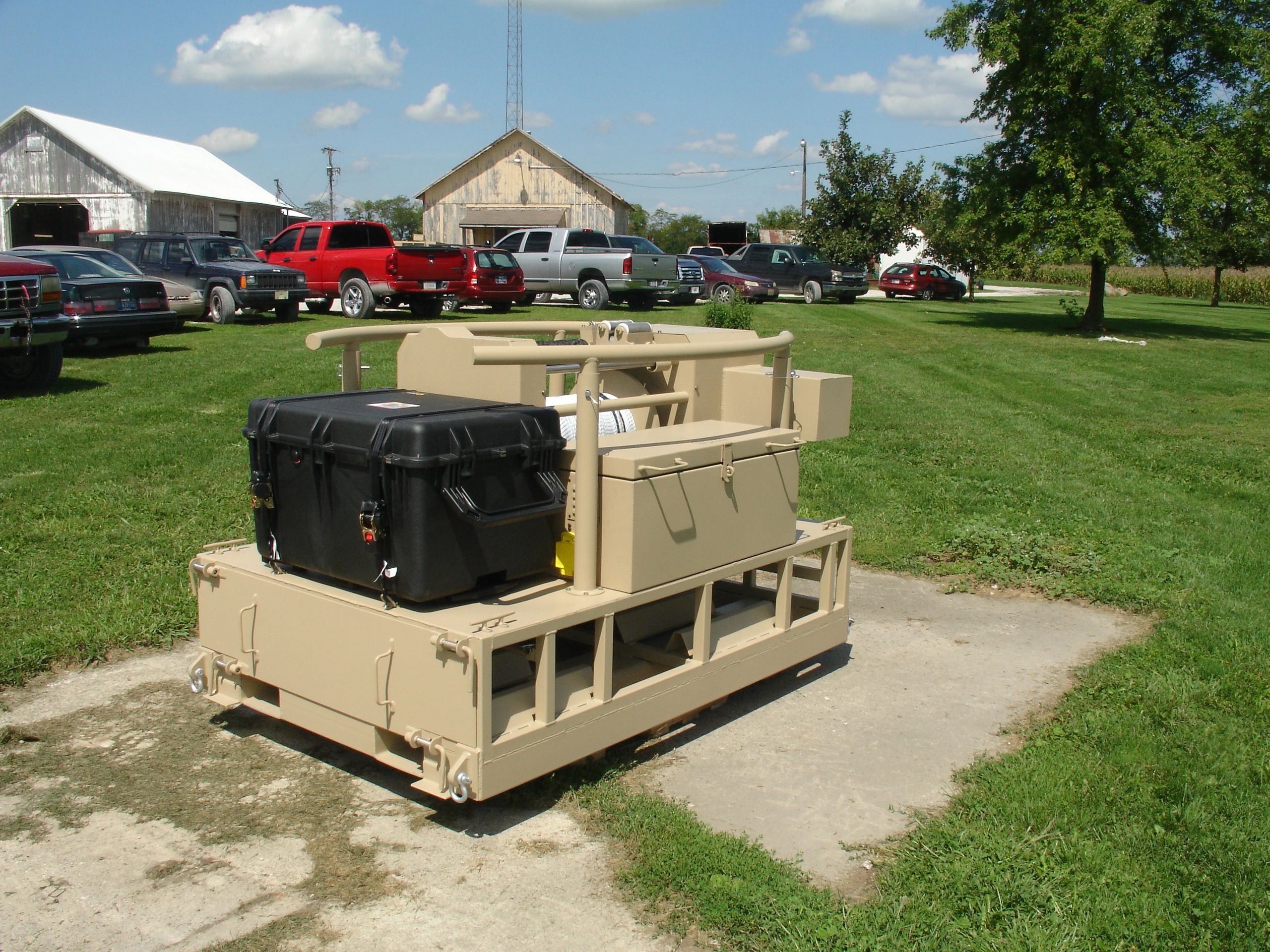

 • AXE4LT-4H dimensions: 68” Length – 63” Width – 38” Height – (1.72mL–1.6mW–0.98mH)

• Aerostat storage container (Pelican Case 26”L – 24”W – 31”H – (66cmL – 61cmW – 79cmH)

• Winch w/electrical slip ring

• Ethernet connection

• 15' (4.5m) Winch control pendant

• 4 bottle helium rack (6 bottle configuration optional)

• Helium fill regulator with hose and fill tube

• Control panel with DC meter, main DC ON/OFF switch

• Shore power breaker to connect external 120VAC to the DLS-30/IQ4 battery charger

• Main DC ON/OFF switch turns the winch on and off

• Winch control by externally connected pendant

• Battery charger DLS-30/IQ4 will connect directly to the battery 30-amp battery charger

• 2 SLA-1175 Marine deep cycle 75AH to provide DC power

• 1 each standard 120VAC 15amp shore power input receptacle
