AXE4FT-8H

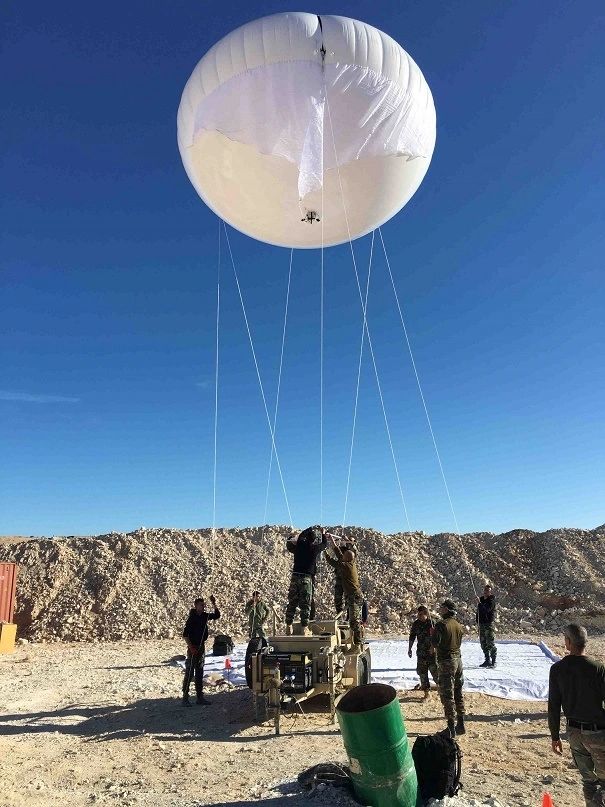

 The SkyDoc™ Tactical Aerostat system can be configured as a command and control system. The main AXE4FT-8H platform with camera and communication links is capable of communicating with additional systems in remote areas.  The AXE4FT-8H systems positioned in remote areas utilizing surveillance camera and data link capability would allow for large areas to be monitored from a central command/control center. The command system would be connected to a local command/control bunker through an Ethernet or fiber optic cable for enhanced security and interference free operation. The remote systems could be connected through two-way satellite links.

 Standard open frame triangular platform, each side is 39" (990mm). There is a circular carbineer attachment ring at each point to secure the platform with a carbineer to each control line equipped with a cable line stop. Platforms may be custom built to suit specific payload configuration.

 The Tactical Aerostat system would consist of a SkyDoc™ Tactical Aerostat Model #22 net lift 63lbs (28.6kg). The Tactical Aerostat is connected to the tether at the apex by the controls lines, (left/right/keel). The net lift does not include payload, payload platform, cable line stops, and attachment carbineers.

 All payload platforms would be equipped with a gyro stabilized camera and radio transceiver link. Control signals are sent to the remote platform, and the video feed is received through this radio link with an effective radio horizon of 39 miles (63km) from command/control center to the remote platforms.

• AXE4FT-8H dimensions: 14' (4.2m) Length, 5'8” (1.7m) Width, 3'6” (1.09m) Height, Weight 2500lbs (1134kg)
• Two axle frame with oversize tires
• Aerostat storage: Pelican Case 26” (66cm) Length, 24” (61cm) Width, 31” (79cm) Height
• Winch with 12 circuit electrical slip ring
• Ethernet connection to payload
• 15' (4.5m) remote winch control pendant
• Eight 5' (1.5m) bottle helium storage (2 racks of four each)
• USA Spec 250 psig CGA 580 helium fill regulator with hose and fill tube
• Control panel and battery storage
• Customer defined shore power input 120~240VAC 50~60HZ
• Main DC ON/OFF winch control switch
• Smart battery charger
• 2 SLA-1175 marine deep cycle 75AH to provide DC power
• 3 kW generator 120~240VAC 50~60HZ with two 20L fuel containers
• Locked Storage container
• Pintle style hitch with hydraulic braking
